FLEXIBILITY, INNOVATIVE, EXPANDABLE

Available up to 16 colors / 18 stations

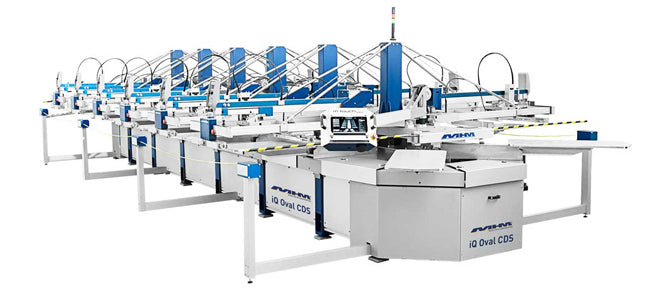

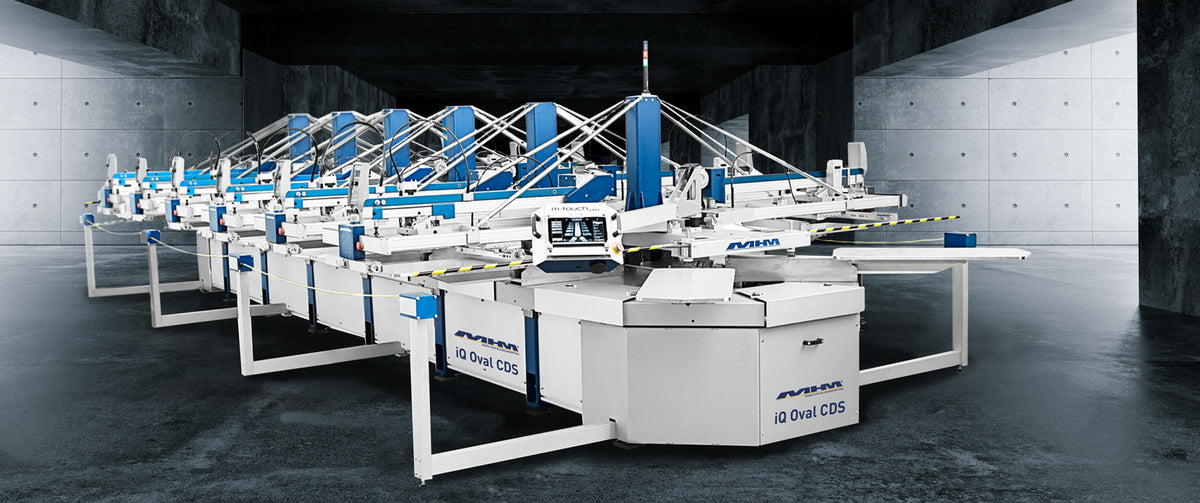

MHM iQ Oval CDS

This CDS drive system provides smooth and precise movement in either direction with excellent long term registration accuracy. iQ-Oval machines are modular and may be configured for almost any production requirement and offer "future proof" expandability at a fraction of the cost of replacing an existing press which your business has outgrown. As your production requirements grow, simply add additional pallets and colors to your current configuration (up to a maximum of 60 pallets), increasing your production capability for maximum flexibility with the minimum of fuss.

  • Self-diagnostic operating system
  • Instant technical support via internet
  • Print job memory storage via main control unit
  • High-speed AC/Servo electric index
  • Single/double index (in both directions)
  • Print start/finish and sample modes
  • Production/batch counter
  • Skip/miss-loaded shirt button
  • Pre-heat pallets function
  • Powerful AC electric drive print heads
  • Control keypad on every print station
  • Individual 'chopper' squeegee system
  • Quick release squeegees & floodbars
  • Squeegee arm lift for increased visibility
  • Independent flood/print speed controls
  • Tool-free front/rear stroke length adjustment
  • Independent squeegee/floodbar angle adjustment
  • Squeegee pressure regulator on every station
  • MHM 'pin-lock' screen holding system
  • Adjustable screen holders for various frame sizes
  • Individual off-contact adjustment on all stations
  • Full micro-registration with zero starting position
  • Aluminium honeycomb pallets
  • Push button super-fast pallet changeover
  • Flash cure adjustments from main control unit
  • Foot pedal with start and hold functions
  • Modular can be expanded

The automatic that can grow with your company

Versatile, Expandable, and Easy to Use

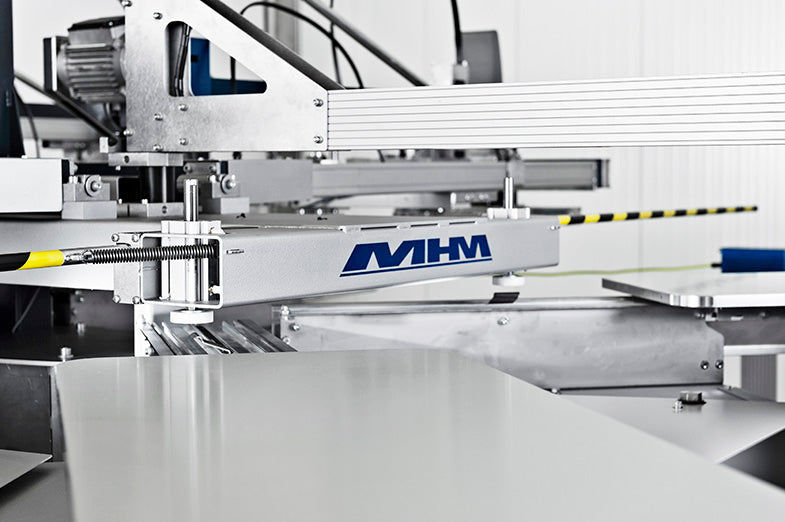

Finest quality components

Hand-built in MHM's modern state-of-the-art manufacturing facility in Europe.

Front and rear micros

With ‘ZERO CLICKERS’ to allow the operator to set all the screen holders to the same starting position ready for setting up the next job.

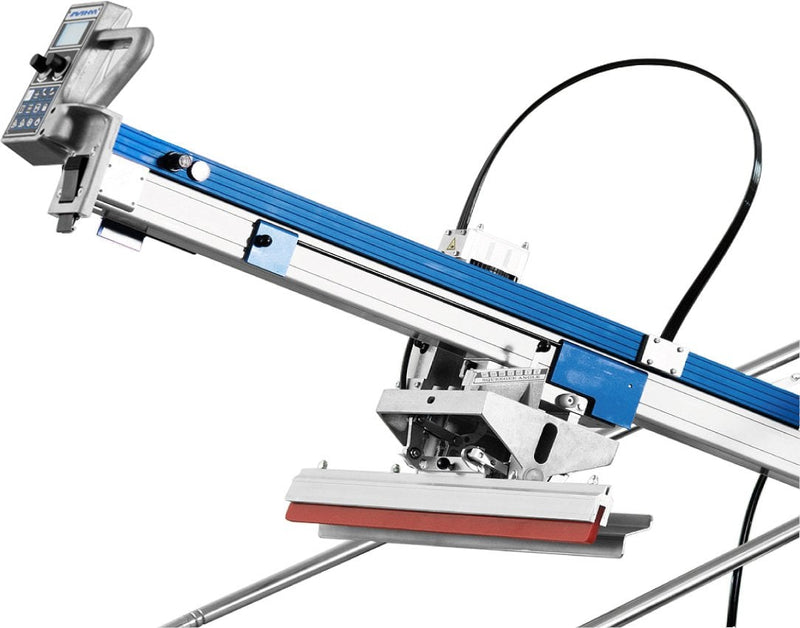

Print arms raise for easy access

Unobstructed access to your screen, flood bars, squeegees, making clean up and job changes a breeze

Easy to use controls

All print stations have intuitive digital keypad with all the functionality your operator needs and expects in a high-production auto

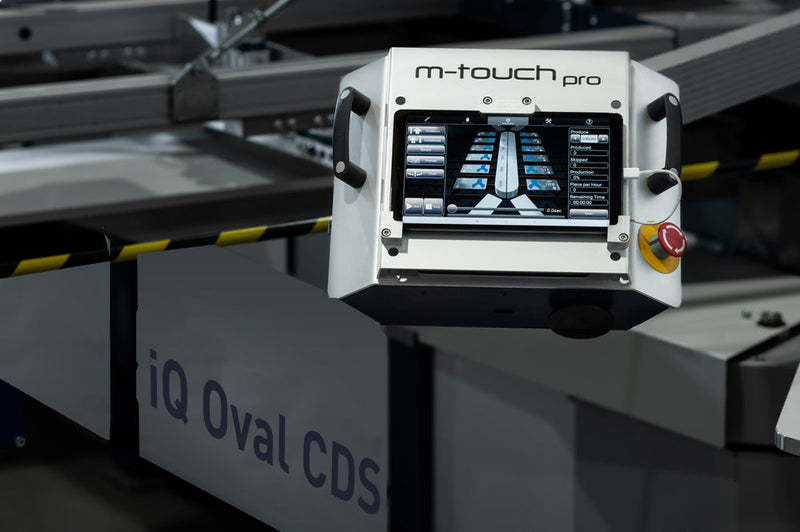

M-Touch Pro

Tablet style main command center with wifi providing access no matter where you are in the world

Off contact adjustment

Dial in the precise amount of off-contact on all stations using the unique front and rear ‘click-type’ calibrated dials.

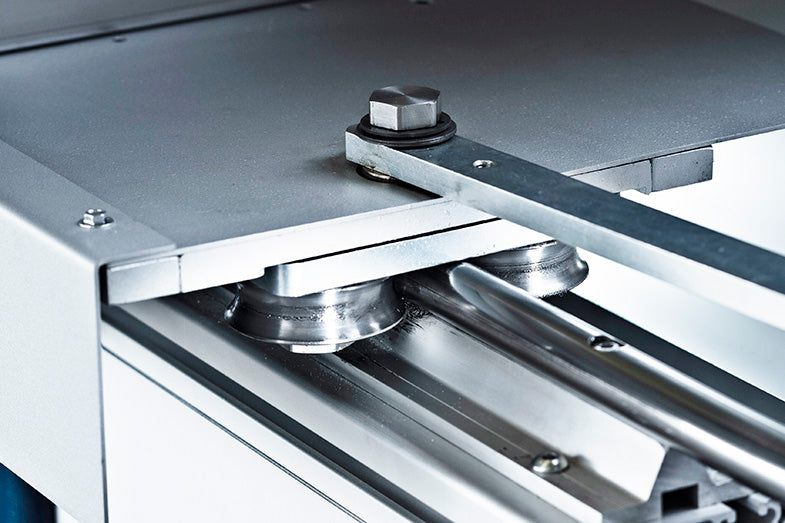

Maintains registration

This press design holds registration with accuracy. Once it's set ....it's set.

Tool-free stroke length adjustment

No wires and no tools, just slide the front and rear stoppers to the desired position

AC Drive print heads

Provide smooth, reliable and consistent print strokes at all speeds and pressures

Tool-free angle adjustment

Easy adjustment with separate levers adjust the squeegee/flood bar angles.

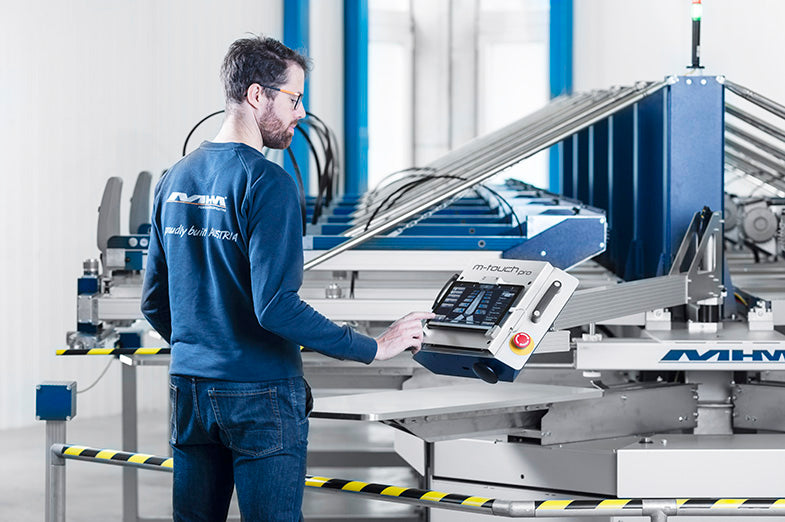

Push button pallet release

A single button press to unlock and change the pallets in a matter of seconds

MHM Pin Registration system

As true on all MHM automatics, the pin registration makes set up lighting fast!
