Digital color at screen-print speed
Hybrid printing · up to 400 prints an hour

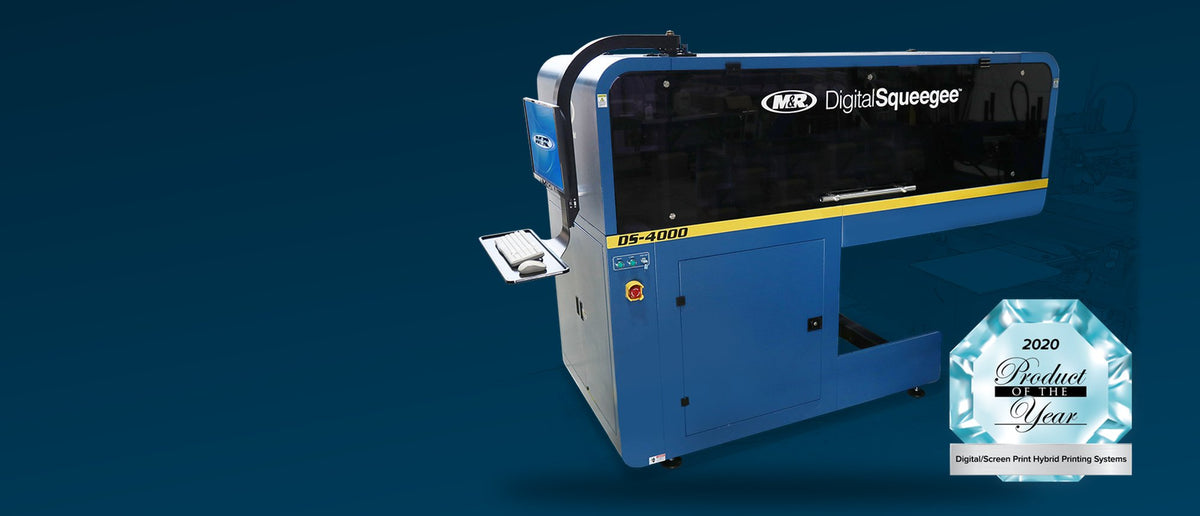

M&R DS-4000 Digital Squeegee
No pretreatment, no digital white ink, and an 8-12 color design sets up with a few screens. It mounts on the M&R Stryker, Challenger III and Gauntlet III, and prints on cotton, polyester, tri-blends and performance fabrics. Every DS-4000 is quoted and configured for your press, so request a quote and an SPSI equipment specialist will follow up.
What the DS-4000 does
- Full-color CMYK digital print on a screen-printed underbase
- Up to 400 prints an hour (M&R estimate)
- No pretreatment and no digital white ink
- 8-12 color designs with a few screens, no separations
- Cotton, polyester, tri-blends and performance fabrics
- Specialty effects before or after the digital print
- Same underbase, different images in one run
- Cures in conventional gas dryers like the M&R Sprint 3000
See it run
Full-color CMYK on a screen-printed underbase
Watch the DS-4000 print on an M&R automatic: the press screens the white underbase, the Digital Squeegee adds the color, and the shirt keeps moving.
Hybrid printing
One underbase, endless color
Screen the white, print the color
The press prints the white underbase; the DS-4000 adds up to 600 x 1200 dpi CMYK on top. Swap the digital art and the same underbase carries a new design.
Photo-real art without the seps
Detailed, full-color designs that would take 8-12 screens set up with a minimal number of screens and no custom ink mixes.

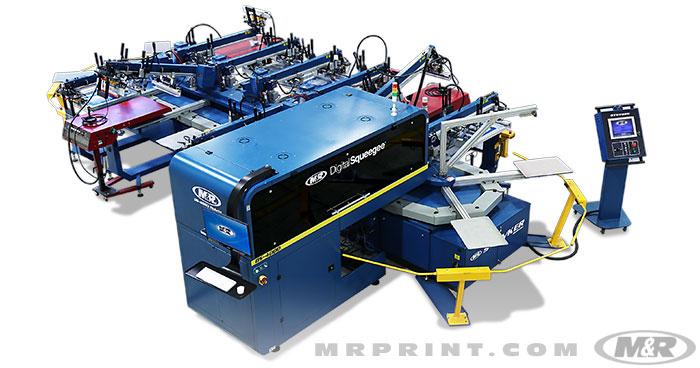

Built into your M&R automatic
Mounts on the Stryker oval and the Challenger III and Gauntlet III, so the press keeps doing what it does best.
Specifications & brochure
- Printheads
- 16 industrial printheads in a 16" (40 cm) array
- Max resolution
- 600 x 1200 dpi
- Max image area
- 16" x 19" (40 x 48 cm)
- Speed
- One full-size image every 4-6 seconds; up to 400 prints an hour
- Ink system
- CMYK; HSA inks for the screen-printed white underbase
- Printing height
- 3-10 mm
- Press compatibility
- M&R Stryker, Challenger III, Gauntlet III
- Electrical
- 220 V, 1 ph, 10 A, 50/60 Hz, 2.2 kW
- Air
- 3 cfm (100 l/min) @ 87 psi (6 bar)
- Size (W x D x H)
- 48" x 104" x 86" (121 x 264 x 219 cm)
- Shipping weight
- 2,646 lb (1,200 kg)
- Warranty
- 1-year limited, M&R 24-hour / 365-day support hotline
More from M&R
The DS-4000 Digital Squeegee Hybrid Printing System
Request a DS-4000 quote
Tell us about your press and what you print, and an SPSI equipment specialist will follow up with M&R pricing, lead time and installation.
