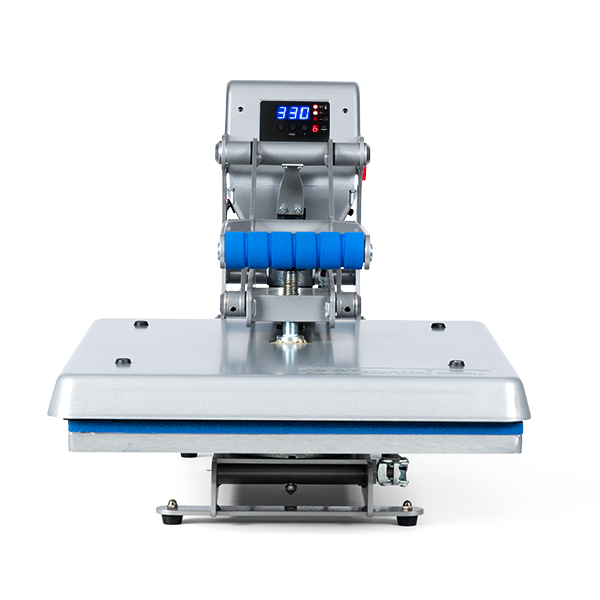

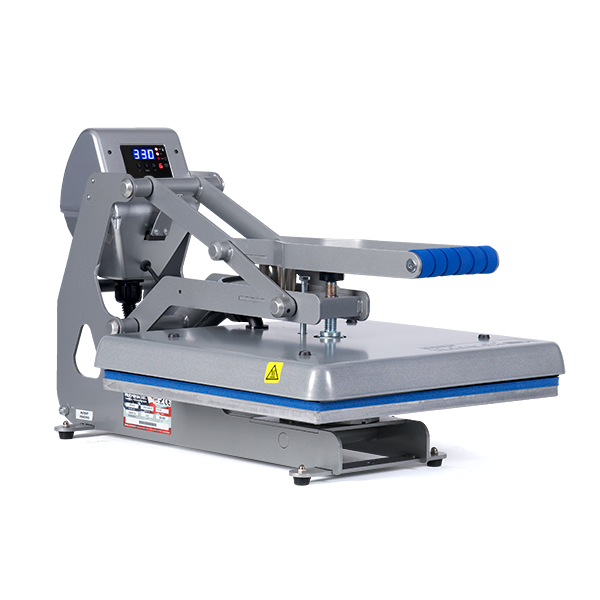

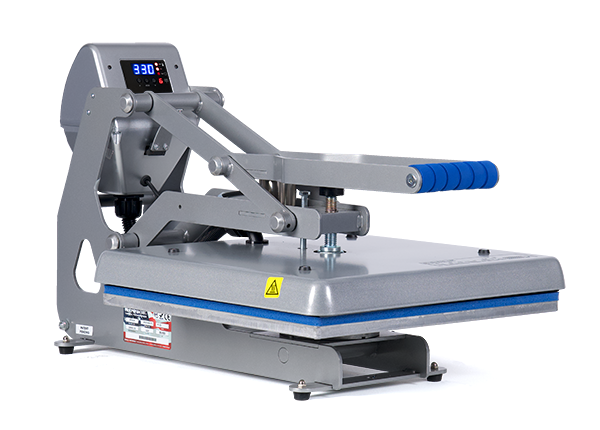

Stahls Hotronix Auto Clam 16X16"
$1,700.00
SKU SH-STX16
Hotronix Auto Clam
This item does not qualify for Free Shipping and a flat shipping fee will apply.
Multi-task while avoiding over-application and ruined garments with this auto open clam heat press.
Interchangeable platens allow you to heat print a variety of items of different shapes and sizes.
- Opens automatically, preventing over-application and scorching
- Clamshell design saves space
- Wide opening allows easy layout
- Digital time, temperature, and pressure readouts
- User friendly - most popular heat press
- Compatible with the Heat Press Caddie™
Features
- Patented Magnetic Auto Open Feature.
- 3/4" thick non-stick coated upper platen.
- Patented Magnetic Assist Lock Down.
- Interchangeable lower platens (optional).
- Platinum RTD heat sensor.
- Cast-in tubular heating element every 2" to ensure the absence of cold spots.
- Over-center pressure adjustment.
- UL/ULC/CE/ROHS approved.
- Temp. range 205° - 420°F.
- °F or °C available.
- 11 x 15 Electrical Options:
120 v; 8.3 amps; 1000 w
240 v; 4.5 amps; 1000 w - Must have designated circuit breaker
- 16 x 16, 16 x 20 Electrical Options:
120 v; 15 amps; 1800 w
240 v; 7.5 amps; 1800 w
- Actual Weight:
11 x 15: 59 lbs
16 x 16: 77 lbs
16 x 20: 87 lbs - Shipping Weight:
11 x 15: 72 lbs
16 x 16: 90 lbs
16 x 20: 100 lbs - Dimensions:
11 x 15 model: 28" x 16" x 17"
16 x 16 model: 28" x 17" x 17"
16 x 20 model: 29" x 17" x 17" - Shipping Dimensions: 36" x 25" x 21" for all models
Hotronix Premier Warranty
- Lifetime Warranty on Heating Element
- 5 yr on Framework
- 2 yr on Circuit board
- 1 yr parts/labor
Download Operator's Manual
Download Platen Compatibility Guide
Hotronix Entire Catalog PDF
Tech Support Tips
