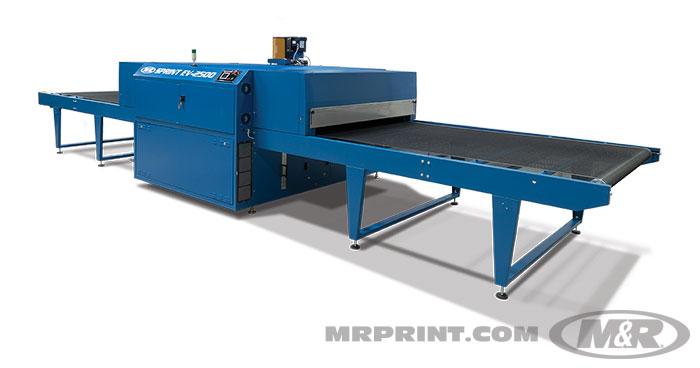

M&R Sprint EV 2500 Gas dryer 38" Belt 4' infeed-10' Heat- 4' Outfeed

M&R Sprint EV 2500 Gas dryer 38" Belt 4' infeed-10' Heat- 4' Outfeed

M&R-SPRINT-WV-2500-38

Quoted for your shop with power, freight and install. Talk to a tech who has run one.

Request a quote

Or call: 763-391-7390 · 817-861-3464

Ships same day from MN & TX · Free shipping on supply orders $300+

Share

M&R's value-priced Sprint: a modular gas conveyor dryer with the curing consistency Sprint dryers are known for.

Overview

The M&R Sprint EV 2500 is a gas-fired screen printing conveyor dryer. This configuration has a 38" belt, a 10' heat chamber and 48" infeed and outfeed. M&R re-engineered the Sprint line to reach a more competitive price while keeping the core design that has made Sprint dryers an industry standard for over 20 years.

A 3.5" color touchscreen runs the dryer. A fuzzy-logic controller holds the chamber within 1° of target at the thermocouple, and the AccuSet belt controller displays retention time, so cure settings are easy to repeat from job to job. M&R's cool-skin construction keeps the heat inside the chamber, where it belongs.

The burner runs on liquid propane or natural gas. The design is modular: 24" heat expansion modules and 48" conveyor extensions let the dryer grow with the shop, from 8' up to 16' of heat. It is built to keep pace with automatic press production.

Features ▼
  • Gas-Fired Burner
    Liquid propane or natural gas, 300,000 Btu maximum input. Normal usage is significantly lower.
  • 3.5" Color Touchscreen
    A simple HMI for setting and monitoring the dryer.
  • Fuzzy-Logic Temperature Control
    Holds chamber heat within 1° of target at the thermocouple.
  • AccuSet Belt Speed Control
    Displays retention time for repeatable cures.
  • Cool-Skin Technology
    Keeps the heat in the dryer and the cabinet cooler on the outside.
  • Patriot Belt on Aluminum Rollers
    M&R's Patriot Belt system for consistent belt travel.
  • Alarms and Tower Light
    Temperature monitor with visible and audible alarms, plus a tower light for status at a glance.
  • Maintenance Minder
    Alerts when routine maintenance is due.
  • Modular Expandability
    24" heat expansion modules and 48" infeed and outfeed extensions.
  • Warranty & Support
    Two-year limited warranty and M&R's 24-hour / 365-day support hotline.
Specifications ▼
Model
M&R Sprint EV 2500 - 38
Belt Width
38" (97 cm)
Heat Chamber Length
10' (305 cm) as listed; 8' to 16' available
Heat Chamber Width
53" (135 cm)
Standard Infeed / Outfeed
48" (122 cm) / 48" (122 cm)
Fuel
Liquid propane (LP) or natural gas (NG)
Burner Input Maximum
300,000 Btu
Gas Input
1" (2.54 cm), 5" w.c. input pressure
Exhaust
12" (30 cm) blower, 1,500 cfm @ 1/4" static pressure
Electrical Configurations
208/230 V, 1 ph, 15/14 A, 2.3 kW; 208/230 V, 3 ph, 10/9 A, 2.3 kW; 380/415 V, 3 ph, 8 A, 2.3 kW; 460/480 V, 3 ph, 5 A, 2.3 kW
Expansion Heat Modules
24" (61 cm)
Overall Length
18.5' (564 cm) and up, depending on heat chamber and conveyor lengths
Shipping Weight
3,300 lb (1,496 kg) with an 8' heat chamber
Warranty
2-year limited warranty
Options
48", 60" and 72" belt widths; 12', 14' and 16' heat chambers; infeed and outfeed extensions in 48" increments
