EMB ZSK 3.2" Round Hoop-400 mm Field 9 Centimeter Plastic Hoop
EMB-AG-9-400
$54.95$0.00
Limited Availability
Sign in to buy
New to SPSI? Open an account
Ships same day from MN & TX · Free shipping on supply orders $300+

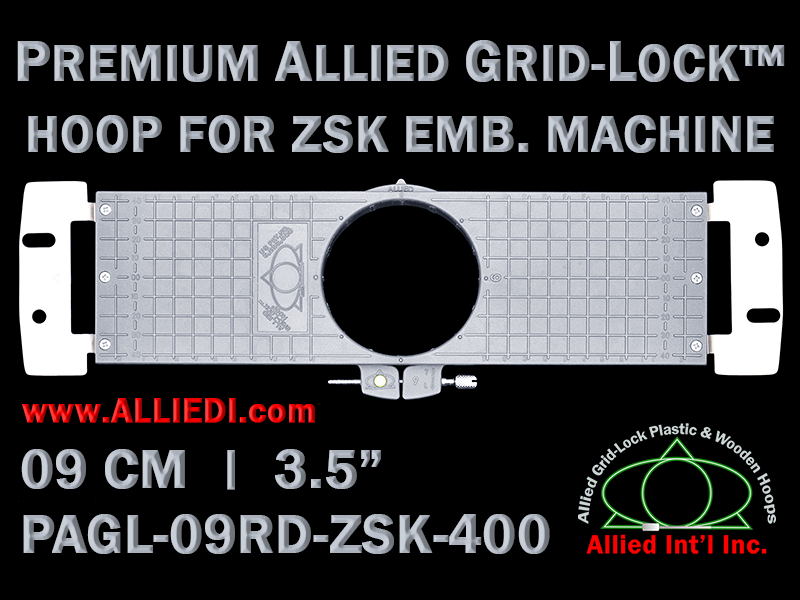

Allied Premium Grid-Lock 9 cm round ZSK hoop: for monograms, pockets and small garments.
Overview
The Premium Allied Grid-Lock (PAGL) 9 cm round hoop fits ZSK machines with a 400 mm sewing field. Allied recommends it for monogramming, pockets, baby and child garments, and even socks. The inside of the inner hoop measures 8 cm (3.1").
Patented grid lines on the hoop face, dot marks around the window and lines on the inner wall help your operators hoop straight the first time. The double height inner hoop and the extra-long 79 mm adjustment screw give a firm grip and a wide opening for thicker garments.
Features
▼
-
Patented Grid-Lock Alignment Grid
Built-in horizontal and vertical grid lines on the hoop face, spaced 1 cm apart and labeled with numbers and letters, give a quick check that the garment is hooped straight (U.S. Patent No. 6,298,800). -
Radial Dots and Inner Wall Lines
Dot marks around the embroidery window and vertical lines around the inside wall of the inner hoop add more reference points for placement without marking the garment. -
Double Height Inner Hoop
The taller inner hoop gives more gripping surface for a tighter hold on the fabric than a single height frame, and adds strength. -
79 mm Bolt-Style Adjustment Screw
The extra-long 79 mm (3 1/8") external screw has a knurled, slotted head. It opens the hoop wider for thick garments and turns by hand or with a flat head screwdriver. -
T and L Markings
Marks on the hoop tab show which way to turn the screw to tighten or loosen. -
Engineered Plastic, Textured Finish
Allied's proprietary plastic composition is built for strength and flexibility, and the non-slip surface texture helps keep tension even across the hooped area.
Specifications
▼
Allied Item #
PAGL-09RD-ZSK-400
Series
Premium Allied Grid-Lock (PAGL)
Designated Size
9 cm (3.5") round
Inside Inner Dimensions
8 cm (3.1") round
Machine
ZSK
Arm Spacing / Sewing Field
400 mm (15.7")
Hoop Thickness
Double Height (DH)
Material
Plastic (Allied proprietary composition)
Adjustment Screw
79 mm (3 1/8") external, knurled and slotted head
Hoop Color
Green or grey (Allied fills Grid-Lock orders with either color)
Best For
▼
Monogramming
Pockets
Baby and Child Garments
Socks
